Belaying and descending on multi-pitch climbs on a single rope (source Petzl)
WARNINGS
- Read the technical notice before viewing the following techniques.
- It is important to fully understand the information provided in the technical notice before using this complementary information.
- Mastering these techniques requires training.
- Consult a professional before attempting to perform these techniques on your own.
While climbing:

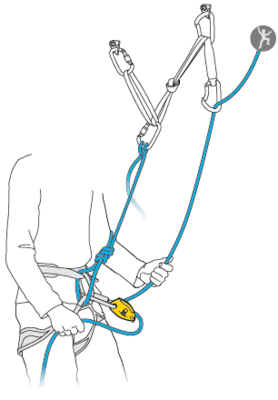

1. Belaying the leader dynamically
AWith the GRIGRI, the belayer moves in order to make it dynamic.
On a multi-pitch route, this movement is limited by the risk of hitting the station. A long lanyard gives the belayer room to move.

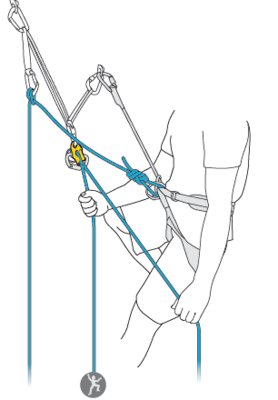

2. Belaying the second
The leader can climb light with a REVERSO, which is convenient for belaying the second.
Descending on a blocked rappel
The single rope must be installed with a blocking technique and a retrieval cord that allows recovery. Descending can be done with the GRIGRI or the REVERSO (with back-up device or knot).
Do not descend on the retrieval cord; it is used only to recover the rope.
Examples of blocking the rope
[col 33 left text_left]

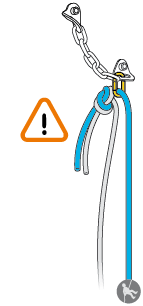

Risk of the knot passing through the quick link, even though it may appear blocked.
This technique does not allow descending on a single rope.
[col 33 inline_left text_left]

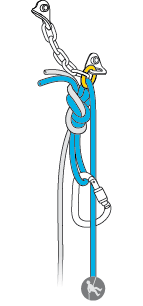

[picto picto_open /] Blocked on a small quick link with back-up.
If the knot goes through the quick link, the fall will be stopped, but rope recovery will be complicated.
[picto picto_rm /] Second rappel can be set up only after the rope has been fully retrieved.
[col 33 left text_left]

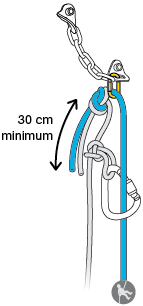

[picto picto_open /] Blocked with a large knot.
[picto picto_rm /] Second rappel can be set up only after the rope has been fully retrieved.
[col 33 inline_left text_left]

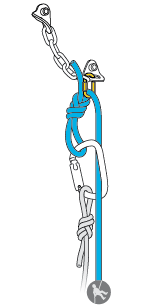

[picto picto_open /] Blocked without a rope-joining knot, with auto-locking carabiner.
[picto picto_open /] Second rappel can be set up without threading the rope through the quick link.
[picto picto_rm /] With a large quick link, risk of poor carabiner positioning and/or stuck rope.
Warning:
[picto picto_rm /] Blocking techniques are cumbersome.; beware of sticking the rope: if the single rope gets stuck out of reach, the retrieval cord can not be used to belay for the recovery.
[picto picto_rm /] The difference in diameter between the ropes may dictate using a double fisherman's knot instead of a classic joining knot.
[picto picto_rm /] The blocking carabiner may fall during recovery. This carabiner must be inspected before any further use.
